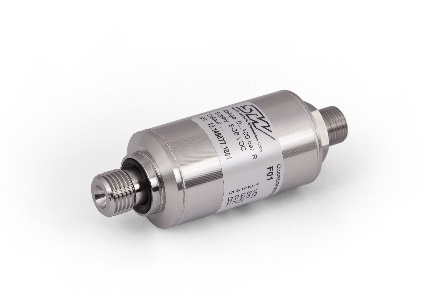

To meet the requirements of the machinery standard EN13849-1, Sensor-Technik Wiedemann has developed the F01 pressure transmitter. This pressure transmitter achieves Performance Level (PLd) and can therefore be used for safety-relevant applications. To ensure compliance for mobile applications, the F01 also has E1 approval.
The measuring element is a thin-film pressure sensor which is welded to the pressure port. The transmitter therefore exhibits a high medium compatibility, as the entire medium contact area is made ??of stainless steel.
The transmitter supports pressure ranges from 10 bar to 1000 bar, and features a 4-20mA output, as well as a switching output. Optionally a changeover contact is available (then without analogue output). To ensure the flexible application of the F01 the user can choose from different pressure connections. The electrical connection is via a 5-pin M12 connector. Calibration of the transmitter over temperature means an overall accuracy of 1% FS in the range of 0…80°C can be achieved. The maximum medium temperature is +150°C.

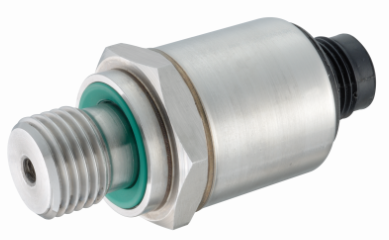

M01-CAN Pressure Sensor – The cost-effective pressure sensor
Our M01-CAN pressure transducer can be integrated into highly efficient CAN-bus based control systems. Designed especially to be used in vehicles and mobile machines, the thin film M01-CAN sensor is extremely reliable and capable of accurately measuring pressures from 25bar up to 800bar.
It is based on a thin-film measuring sensor, which is constructed of stainless steel and welded with the pressure adapter. It guarantees high media compatibility.
Available with either SAE J1939 or CANopen CAN protocols and with a high sample rate up to 1000 indicated values per second and adjustable measurement attenuation, this pressure transmitter is ideal for use in different areas of mobile hydraulics. Data exchange is possible via the on-board CAN interface which supports 11 or 29-bit identifiers at data rates of up to 1 Mbit/sec. For the electrical connection, there is a choice of the M12 or various customized connectors.
Sensor-Technik UK is the UK and Ireland distributor for Sensor-Technik Wiedemann. A member of the Wiedemann Group of companies, it was set up in 2001 as a distributor and system integrator of the STW product range. Sensor-Technik UK complements its extremely capable range of hardware with innovative engineering services. From software to cable looms, Sensor-Technik UK is your one-stop-shop for control, measurement and integration.
Contact:
Mark Wood (General Manager)
Sensor-Technik UK Ltd,
Unit 21M, Bedford Heights Business Centre,
Manton Lane, Bedford,
MK41 7PH
Tel: (+44) 01234 270770
Email: info@sensor-technik.co.uk
