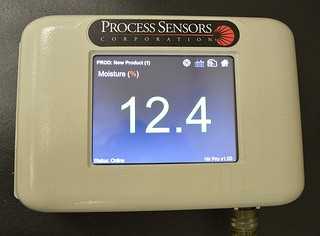

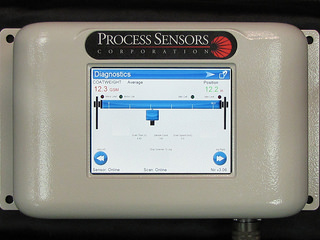

Guardian Basic Starter System consists of one MCT466 Transmitter, one industrial scanning frame and a 5.7” Operator Interface with digital display. Display can also show position of transmitter across web. System has automatic web edge detection but no standard data logging or roll report capability and no web profile. It can scan automatically or manually jog to position for Machine Direction measurements. Data logging can be accommodated with OPC option selection. System includes analog outputs. Ethernet or Ethernet IP options are available at additional cost. Web temperature is available at an additional cost.

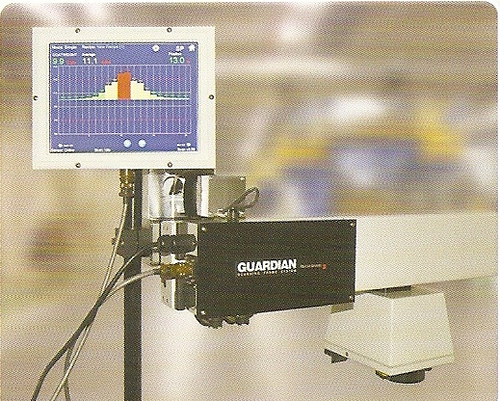

Guardian Mid-Level System consists of one MCT466 Transmitter, one industrial scanning frame and a 12” Operator Interface with Cross Direction Web Profile Display. System has automatic web edge detection but no standard data logging or roll report capability. It can scan automatically or manually jog to position for Machine Direction measurements. Data logging can be accommodated with OPC option selection. System includes analog outputs. Ethernet or Ethernet IP options are available at additional cost. Web temperature is available at an additional cost. This is an OPC computer based system, not a PC based system.
Guardian PC Based System consists of one or more MCT466 Transmitters, one or more scanning frames and a 19” or larger display for Cross Direction Web Profile. It can scan automatically or jog to position for Machine Direction measurements. System includes analog outputs. Ethernet or Ethernet IP options are available at additional cost. System includes automatic web edge detection and can display multiple measurements from multiple transmitter/scanners on a single display. System can also have a Central Display and local displays at each frame end with two way Ethernet communications. Web temperature is available as an option. This is a PC based system and includes data logging capabilities and outputs for data archiving and roll reports.
