IBASE Technology, a manufacturer of application specific industrial embedded computing platforms, is pleased to announce the new MAI602-M4D80 motion control system, ideal for automated optical inspection, semiconductor wafer handling, packaging and material handling systems.
Powered by 7th/6th Gen Intel® Core™ i7/i5/i3 desktop processors, the MAI602 has a 4-axis motion control PCIe card that meets the performance and positioning accuracy requirements of high-performance servo/step motors. For use in visual inspection applications, the motion control card has a camera integrated with a position comparison trigger and a built-in 80-ch isolated digital I/O card to control and monitor the switches of surrounding digital signals and control the alarm signals.
The rugged, fanless and compact system is designed to operate at an ambient temperature of up to 50 degrees Celsius in a non-airflow environment and has protection against accidental reverse polarity, over voltage or under voltage. Designed with fast heat dissipation and easy installation, enclosure vents allow airflow to the internal components as well a heat pipe mechanism for fast cooling. To provide easier user installation, the I/O interface of the system has all been positioned on the same side.

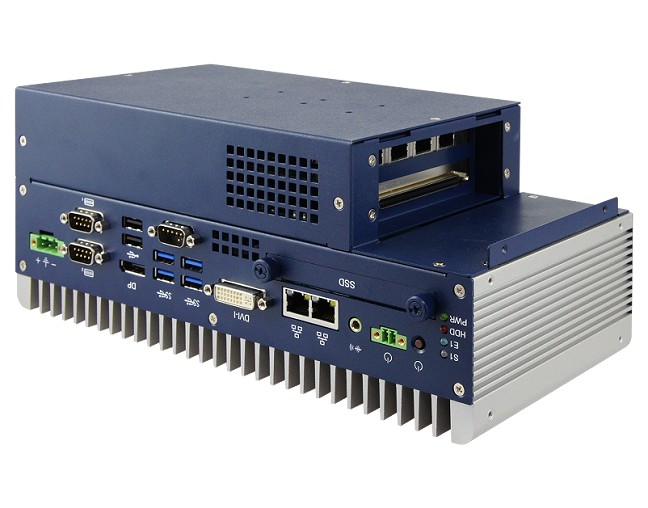

Measuring 275mm by 140mm by 117mm and can be installed with the bundled wall mount bracket or an optional DIN-rail bracket, the MAI02 has a flexible rear I/O interface including DVI and DisplayPort display connectors, audio line-out, two serial ports, two Gigabit Ethernet ports, 2-pin power-button terminal block, and a 3-pin 24V DC-in terminal block. The MAI602’s sister model, the MAI602-B, also has two extra slots (PCIe x8 & PCIe x4 slot) to accommodate different control cards. A Mini
PCI-E on board supports IBASE’s Field Bus MotionNET modules for extra I/O and motion control functionalities.
The IBASE MAI602-M4D80 will be on display for the first time in Europe at the PPMA Show 2018 on stand J78 from September 25th to September 27th at the NEC, Birmingham.
