The modern manufacturing landscape is defined by an uncompromising demand for precision. Across sectors as diverse as energy generation, oil and gas, packaging technology, and specialised metals and plastics production, the margins for error are continuously shrinking. Components are becoming more complex, materials more advanced, and regulatory frameworks more stringent. In this high-stakes environment, quality control cannot be an afterthought or a production bottleneck; it must be a seamless, highly accurate, and rapid process.

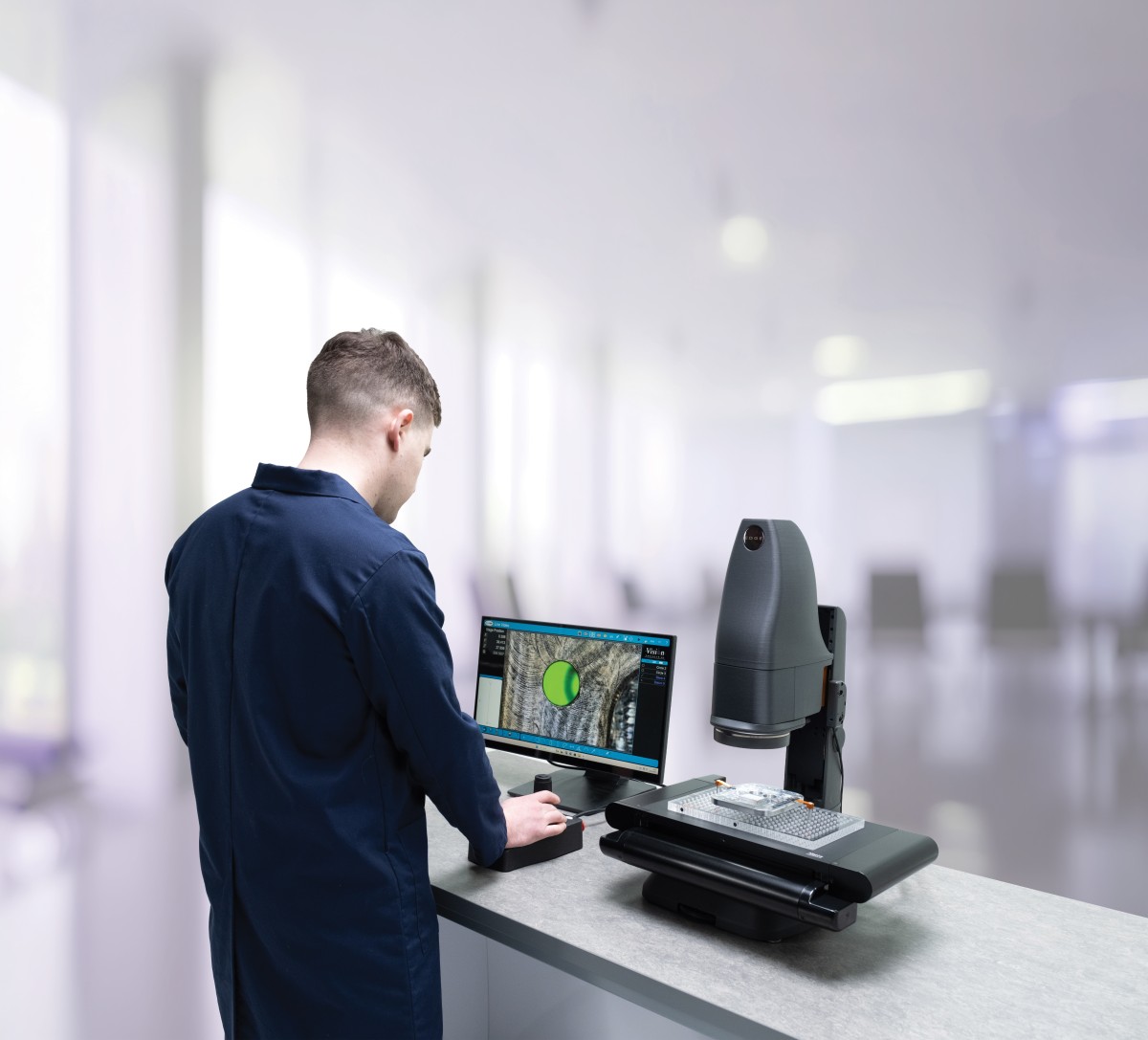

For decades, traditional tactile measurement systems have been the default. However, as industry shifts towards delicate substrates, complex geometries, and the need for rapid throughput, the limitations of physical probes have become glaringly apparent. Enter the era of advanced optical measurement. Vision Engineering has long been at the vanguard of this transition, and with the introduction of the new EDGE series of non-contact zoom metrology systems, the benchmark for industrial inspection and measurement has been decisively raised.
The EDGE Series: A Strategic Asset
The EDGE series has been engineered specifically to address the core challenges faced by modern quality and production engineers: the need for absolute accuracy, unquestionable repeatability, and rapid data acquisition, all without risking damage to the component being measured.
By utilising state-of-the-art programmable zoom optics alongside advanced digital edge-detection algorithms, the EDGE series allows operators to seamlessly transition from macro overviews to micro-level inspections. This dynamic zoom capability ensures that operators can identify, measure, and document micro-features with absolute confidence, eliminating the component deformation and geometric distortion associated with tactile probes.
For the subscribers of PECM operating in highly specialised sectors, the operational advantages of the EDGE series translate directly to enhanced yield, reduced scrap, and robust compliance.
Optimising Packaging Technology and Plastics Production
In the packaging sector and the wider plastics and rubber manufacturing industries, material compliance is a persistent challenge. These materials are inherently flexible, prone to deformation, and often highly reflective or translucent. When measured with a traditional coordinate measuring machine (CMM), the physical pressure of the stylus can easily compress a plastic or rubber seal, resulting in inaccurate dimensional data.
The non-contact architecture of the EDGE series eliminates this variable entirely. Whether inspecting the intricate thread profiles of pharmaceutical closures or the micro-tolerances of extruded rubber seals, the optical edge-detection capabilities ensure that the true, un-deformed geometry is captured. Furthermore, the advanced illumination options integrated into the EDGE series effortlessly manage the difficult optical properties of translucent plastics, providing high-contrast imaging that guarantees reliable, repeatable measurements across production batches.
Fortifying Oil, Gas, and Energy Generation
The components driving the oil, gas, and broader energy sectors are subject to some of the most extreme operating environments on the planet. Valves, turbines, and specialised couplings must withstand immense pressures, corrosive environments, and extreme thermal cycling. Here, dimensional accuracy is not merely a matter of quality; it is a matter of safety and critical infrastructure integrity.
These sectors frequently deal with large, heavy, and highly machined metal components featuring complex internal geometries and reflective surface finishes. The EDGE series excels in this arena. The sophisticated zoom capabilities allow engineers to measure deep into bored holes and inspect complex threading or chamfers that are physically inaccessible to standard CMM styli. Additionally, the software’s automated routines and CAD-import functionalities allow for the rapid execution of complex measurement programmes. This ensures that every high-value component destined for a deep-sea wellhead or a power generation turbine meets its exact design specifications, providing full traceability and auditing confidence.
Advancing Specialised Metal Manufacturing

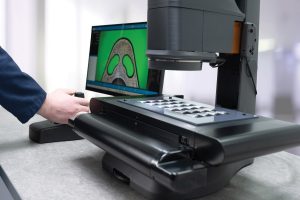

For specialised metal manufacturers producing high-precision turned parts or aerospace-grade components, throughput is just as critical as accuracy. The EDGE series introduces a paradigm shift in inspection speed. The combination of dynamic field-of-view (FOV) capabilities and automated edge detection means that multiple features—or even multiple small components—can be measured simultaneously in a fraction of the time it would take a tactile system.
The intuitive interface of the EDGE series also democratises high-end metrology. Historically, highly skilled metrologists were required to programme and operate complex measurement equipment. The user-centric design and intelligent software of the EDGE series allow shop-floor operators to execute rigorous, repeatable measurement routines with minimal training, drastically reducing the time components spend waiting for inspection.
The Future of Industrial Quality
The transition to advanced non-contact metrology is no longer merely a technological upgrade; it is a fundamental requirement for maintaining competitiveness in global manufacturing. Vision Engineering’s EDGE series represents the pinnacle of this evolution, offering an unparalleled synthesis of optical brilliance, digital intelligence, and robust industrial design.
For manufacturers in packaging, energy, oil and gas, and specialised materials, the mandate is clear: quality control must protect the product, accelerate the process, and guarantee the result. By investing in the non-contact precision of the EDGE series, manufacturers are not just measuring their components—they are future-proofing their production lines.
For more information regarding EDGE series contact Vision Engineering :
T: 01483 248300
E: enquiries@visioneng.co.uk
W: https://www.visioneng.com/products/non-contact-measurement/edge-series/
