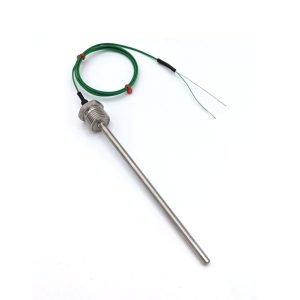

Screw in type K temperature sensors with a measuring range of -75 to +250°C and 1 metre PFA flat pair lead wire.

Available with process thread options 1/4 BSPP, 1/2 BSPP & 1/4 & 1/2 NPT for direct mounting into vessels, pipes, tanks, or ducting for liquid or gas temperature measurement. With standard diameters of 3 & 6mm diameter 316 Stainless steel sheath and standard lengths of 50, 100, 150 & 200.

  • Screw-in options 1/4 BSPP, 1/2 BSPP & 1/4 & 1/2 NPT process threads
  • Type K Class 1 Thermocouple
  • Sensor temperature rating -75 to +250°C
  • 3 & 6mm 316 stainless steel sheath
  • 50, 100, 150 & 200mm standard lengths

Typical Applications

  • Industrial Process Control
  • Pipes or Ducts
  • Vessels & Tank

Specifications

General Description Screw in Type K thermocouple
Thermocouple Type Type K IEC
Cable Length 1M
Cable Type PFA
Termination Type Stripped Wires
Sheath Length (mm) 50mm, 100mm, 150mm, 200mm
Sheath Diameter (mm) 3mm, 6mm
Process Connection options 1/4″BSPP, 1/2″BSPP, 1/4″NPT, 1/2″NPT
Max. Temperature +250°C
Min. Temperature -75°C
Standards Met IEC
Number of Wires 2
