Labfacility offers a wide range of precision platinum temperature sensing resistors in both wire-wound and flat film construction. All standard items are available in quantity from stock; non-standard detectors can be supplied to order.
- Precision platinum temperature sensors
- Pt100, Pt500, Pt1000 and other values available
- Available from stock
- Wire-wound and flat film types
- Wide range of sizes
- Tolerance values include class A or B, to 1/10th of class B
- Single or duplex detectors
- Specials available to order including alternative Ro values and nickel resistors

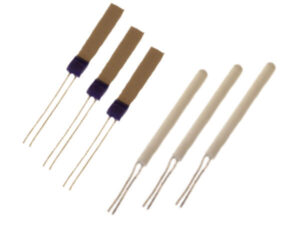

Platinum wire-wound detectors comprise a pure platinum wire wound into a miniature spiral and located within axial holes in a high purity alumina rod. The freedom of movement of the platinum wire gives good long-term stability and a wide operating temperature range of -200 to up to +800°C. Labfacility wire-wound detectors are cylindrical in shape and ideally suited for housing within a protective metal tube.
The construction of the wire wound platinum detector uses a large proportion of manual labour, with a high degree of training and skill. The careful selection of all components is vital, as are good working conditions. Complete compatibility between metal, ceramic and glass when used, together with the connecting leads is essential, and most important, strain must be eliminated. Various methods of detector construction are employed to meet the requirements of differing applications.
Although more expensive than flat film alternatives, wire-wound detectors have a wider temperature range (particularly below -50°C) and are readily available in close tolerance classes.
A range of alternative diameters and lengths is available. Duplex detectors containing two platinum resistors are also available.
Platinum flat-film detectors are produced by the deposition of a platinum film on to a flat ceramic substrate, the platinum being sealed to provide protection. Flat-film detectors are available in a range of sizes and are recommended for applications requiring small size, fast response to temperature changes, surface measurement, and resistance to vibration and shock. They are generally less expensive than wire-wound detectors, but the choice of tolerance classes is more limited.
Click here to see our range of wire-wound and Flat Film Detectors on www.labfacility.com
Labfacility Celebrates 50 years!
Labfacility are the UK’s leading manufacturer of Temperature Sensors, Thermocouple Connectors and associated Temperature Instrumentation and stockists of Thermocouple Cables and in 2021 we will be celebrating 50 years of trading.
The Company is ISO 9001 accredited and has two UK sites – West Sussex and South Yorkshire and export to over 85 countries.
We are specialists in the design and manufacture of custom-built temperature sensors at our 18,000 square foot Yorkshire plant located in Dinnington. Shipments are made to world-wide destinations daily; technical and application advice is always freely available.
Quality and Service are key elements in the continued growth of Labfacility; technical support for both sensing and instrumentation is always freely available from our experienced technical sales teams.
